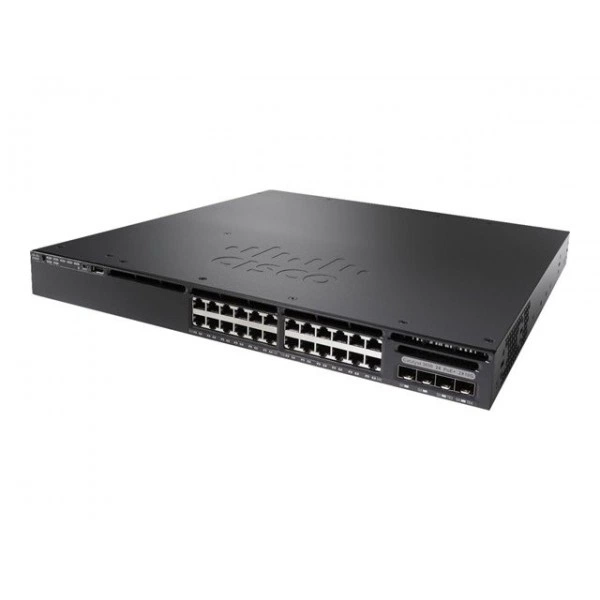

Коммутатор Cisco Catalyst, 24 x GE, 2 x SFP+, IP Services WS-C3650-24TD-E

Name: Коммутатор Cisco Catalyst, 24 x GE, 2 x SFP+, IP Services WS-C3650-24TD-E
Brand: CISCO
SKU: WS-C3650-24TD-E
Price: 428950 RUB
Availability: InStock

428 950 ₽

Запросите КП для получения индивидуальной скидки

Получить КП

Подберем решение под ваши задачи

Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение

Имя

E-mail

Фамилия

Телефон

Указать реквизиты организации или ИП

Комментарий к запросу

Вы можете добавить файлы с реквизитами компании, спецификацией или ТЗ

Мною прочитаны и я даю согласие с документом Политика конфиденциальности

Не отвечаем 5 минут — скидка на весь заказ!

sale@catalyst-russia.ru

Нужна скидка? Звони — сделаем лучшее предложение

+7 499 346-63-92

Работаем по всей России

Возможны самовывоз и доставка по всей территории России

Надежность

Профессиональная поддержка

Cisco Catalyst 3650 на 24 порта Data, 2 разъема 10G Uplink, набор функций IP Services Сервисный контракт Cisco SMARTnet (8x5xNBD) для данного устройства: CON-SNT-WSC365TE

Технические характеристики

GeneralExpansion / ConnectivityПитаниеMiscellaneousSoftware / System RequirementsDimensions & WeightManufacturer WarrantyОкружающая среда Parameters

Device Type	Switch - 24 ports - L3 - managed - stackable
Enclosure Type	Desktop, rack-mountable - 1U
Interfaces	Gigabit Ethernet
Ports	24 x 10/100/1000 + 2 x 10 Gigabit SFP+
Performance	Switching capacity : 88 Gbps Forwarding performance : 65.47 Mpps
Capacity	IPv4 routes : 24000 NetFlow entries : 24000 Virtual interfaces (VLANs) : 4000 Switched virtual interfaces (SVIs) : 1000
MAC Address Table Size	32000 entries
Jumbo Frame Support	9198
Routing Protocol	BGP-4, IS-IS, RIP-1, RIP-2, PIM-SM, static IP routing, PIM-DM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI
Authentication Method	Secure Shell (SSH), RADIUS, TACACS+
Features	Layer 2 switching, ARP support, trunking, VLAN support, IGMP snooping, IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Flexible NetFlow (FNF)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP)
RAM	4 GB
Flash Memory	2 GB
Status Indicators	Port transmission speed, port duplex mode, system, active, status
Interfaces	24 x 1000Base-T - RJ-45 1 x USB - Type A 1 x serial (console) - RJ-45 - management 1 x management (Gigabit LAN) - RJ-45 - management 1 x management (mini-USB) - Type B - management 2 x 1000Base-X - SFP - uplink 2 x 10GBase-X - SFP+ - uplink
Expansion Slots	1 (total) / 1 (free) x Stacking Module slot
Питание Device	Internal power supply - hot-plug
Installed Qty	1 (installed) / 2 (max)
Питание Redundancy	Optional
Питание Redundancy Scheme	1+1 (with optional power supply)
Питание Provided	250 Watt
Voltage Required	AC 120/230 V ( 50/60 Hz )
Rack Mounting Kit	Included
MTBF	661,800 hours
Compliant Standards	CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, EN55022 Class A, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, KCC, FCC Part 15 A, ISO 7779, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, KN22 Class A
Software Included	Cisco IOS IP Services
Approximate Width	17.5 in
Approximate Depth	17.6 in
Approximate Height	1.7 in
Approximate Weight	15.1 lbs
Service & Support	Limited lifetime warranty
Service & Support Details	Limited warranty - replacement - lifetime - response time: next business day Technical support - phone consulting - 90 days
Min Operating Temperature	23
Max Operating Temperature	113
Humidity Range Operating	5 - 96% (non-condensing)
Min Storage Temperature	40
Max Storage Temperature	158

Бренд

CISCO

Технические характеристики WS-C3650-24TD-E

Характеристики

Approximate Depth: 17.6 in
Approximate Height: 1.7 in
Approximate Weight: 15.1 lbs
Approximate Width: 17.5 in
Authentication Method: Secure Shell (SSH), RADIUS, TACACS+
Capacity: IPv4 routes : 24000 NetFlow entries : 24000 Virtual interfaces (VLANs) : 4000 Switched virtual interfaces (SVIs) : 1000
Compliant Standards: CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, EN55022 Class A, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, KCC, FCC Part 15 A, ISO 7779, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, KN22 Class A
Device Type: Switch - 24 ports - L3 - managed - stackable
Enclosure Type: Desktop, rack-mountable - 1U
Expansion Slots: 1 (total) / 1 (free) x Stacking Module slot
Features: Layer 2 switching, ARP support, trunking, VLAN support, IGMP snooping, IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Flexible NetFlow (FNF)
Flash Memory: 2 GB
Humidity Range Operating: 5 - 96% (non-condensing)
Installed Qty: 1 (installed) / 2 (max)
Interfaces: 24 x 1000Base-T - RJ-45 1 x USB - Type A 1 x serial (console) - RJ-45 - management 1 x management (Gigabit LAN) - RJ-45 - management 1 x management (mini-USB) - Type B - management 2 x 1000Base-X - SFP - uplink 2 x 10GBase-X - SFP+ - uplink
Jumbo Frame Support: 9198
MAC Address Table Size: 32000 entries
Max Operating Temperature: 113
Max Storage Temperature: 158

Min Operating Temperature: 23
Min Storage Temperature: 40
MTBF: 661,800 hours
Performance: Switching capacity : 88 Gbps Forwarding performance : 65.47 Mpps
Ports: 24 x 10/100/1000 + 2 x 10 Gigabit SFP+
Rack Mounting Kit: Included
RAM: 4 GB
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI
Routing Protocol: BGP-4, IS-IS, RIP-1, RIP-2, PIM-SM, static IP routing, PIM-DM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng
Service & Support: Limited lifetime warranty
Service & Support Details: Limited warranty - replacement - lifetime - response time: next business day Technical support - phone consulting - 90 days
Software Included: Cisco IOS IP Services
Status Indicators: Port transmission speed, port duplex mode, system, active, status
Voltage Required: AC 120/230 V ( 50/60 Hz )
Бренд: CISCO
Питание Device: Internal power supply - hot-plug
Питание Provided: 250 Watt
Питание Redundancy: Optional
Питание Redundancy Scheme: 1+1 (with optional power supply)
